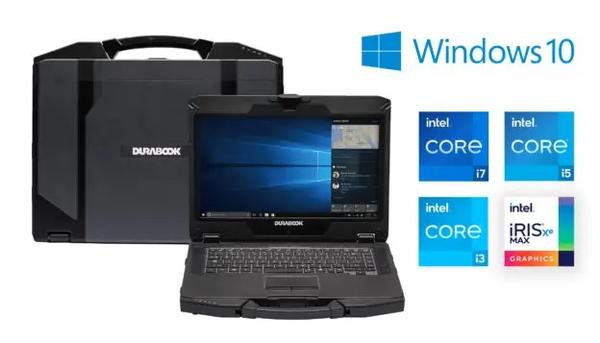

Durabook S14 14" FHD Display i5-1135G7 Backlit Keyboard 2021 Version
Description
Durabook S14, 14" FHD (1920 x1080) Standard Display, Intel® Core™ i5-1135G7 Processor
2.4 GHz up to 4.2 GHz, Windows 10 Professional with 8GB RAM, 256GB PCIe SSD, Wi-Fi 6 +
Bluetooth v5.1, 2MP Front Camera, HDMI, VGA, RS232, Smart Card, SD Card Reader, TPM,
Backlight Keyboard, with docking connector, IP53, 4ft Drop, 3-Year Durabook Standard
Limited Warranty Coverage
The S14I is built with a robust mechanical design and rigorously tested components. It meets the standards of MIL-STD-810G; withstands up to a 4-foot drop; and boasts an IP53 rating. This tough yet elegant rugged laptop breaches the boundary between semi-rugged and fully-rugged devices.
S14I is equipped with the latest NVMe PCIe SSD technology, providing up to 1TB of storage, while its PCIe offers speeds 6x faster than SATA III.
Furthermore, S14I can accommodate two more internal SSD SATA III drives to maximize the onboard storage.
In the field, portability equals productivity. The S14I weighs only 2.3kg and is 33% slimmer than the previous generation.
Adding ultra-long battery life of 10 hours and battery swap capability to its mobile form factor, the S14I enables non-stop operation outside of the office.
Rugged Specs
| MIL-STD-810G Certified | 4′ drop 26 faces, drop, shock, vibration, altitude, freeze/thaw, high/low temperature, temperature shock, humidity |
| Water and Dust Resistant | IP53 |
Tech Specs
| Display | 14.0″ FHD (1920 x1080) |
| Operating System | Windows® 10 Pro |
| Processors | Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache |
| Memory | 2 slots 8GB upgradeable to 64GB (2400-3200MHz DDR4) |
| Storage | 256GB NVME PCIE SSD Optional 512GB/1TB PCIE SSD Optional OPAL 2.0 SSD Optional 2nd/3rd storage (SSD)2 |
| Graphics | Intel® Iris® Xe Graphics |
| Camera | integrated 2.0 MP web-cam with shutter design |
| Audio | integrated microphone3 Intel® High Definition Audio Compliant Integrated speaker x 2 Keyboard volume and mute controls |
| Media Bay (One Option Only) |
Optional DVD super multi Optional 2nd battery Optional media bay storage SSD2 Optional ExpressCard 54 x 1 or PCMCIA Type II x 11,2 Optional 2nd RJ-45 & 2nd serial port (RS232)1,2 |
| I/O Ports | USB 3.2 Gen2 (type A) x 2 USB 3.2 Gen2 (type C) x 1 (support DP) USB 2.0 (type A) x 1 Audio in/out (combo jack) x 1 SD card (SDXC) x 1 10/100/1000 Ethernet (RJ-45) x 1 VGA port (D-sub,15-pin) x 1 HDMI port (type A) x 1 Serial port (RS232/RS422/RS485 : D-sub,9-pin) x 1 SIM card x 1 DC-In jack x 1 Optional smart card reader x 14 Optional docking connector (41-pin Pogo) x 1 Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Keyboard & Input | 2 user-definable keys (P1/P2) RF Signal slide-switch Standard membrane keyboard with optional LED backlight |
| Wireless & Communications | Integrated 10/100/1000 Ethernet Intel® Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax) Bluetooth® V5.1 Optional dedicated GPS module (UBLOX-NEO-M8N) Optional 4G LTE multi-carrier mobile broadband Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Security | Intel® vPro™ Technology (per CPU options) TPM 2.0 NIST BIOS compliant Easy removable SSD Stealth mode Kensington lock Optional smart card reader4 Optional Windows Hello2 Optional night vision mode5 Optional fingerprint scanner Optional HF RFID/NFC reader2,4 |
| Power | AC adapter : 100-240V, 50Hz-60Hz, 90W Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA Main battery Li-Ion, 10.8V, 4700mAh, 10 hours6 Optional 2nd battery Li-Ion 10.8V, 4700mAh, 10 hours6 Optional bridge battery : 5 minutes swap time7 |
| Green Design | RoHS/REACH compliant, EPEAT Silver |
| Certifications | US: FCC, DOC+ FCC ID EU: CE |
| Dimension & Weight | 13.78” (W) x 11.1″ (D) x 1.5” (H)8 5.07 lbs8 |
| Warranty | 3-year limited warranty standard |
